SPI-MV Single Point Insertion Flow Metering Valve

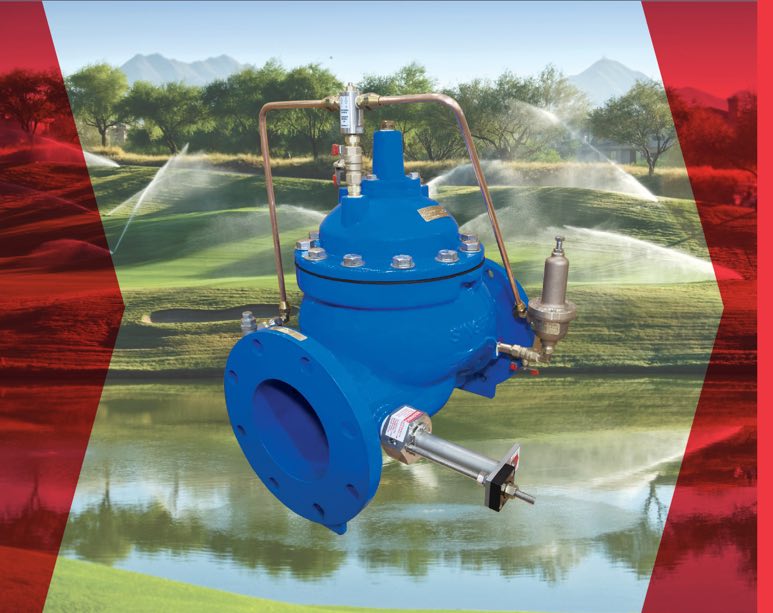

The Singer Model 106-SPI-MV is a Single Point Insertion Electromagnetic Flow Meter, installed and calibrated in conjunction with a Singer Valve to provide an accurate flow rate that can be utilized with the metering valve as a stand alone option or built into a 106-2SC-PCO pilot system to provide complete flow-based valve control.

The sensor is available for one-inch taps, depending upon valve size and application. The compact insertion design fits in confined spaces and offers complete accessibility. The flow meter can be removed for easy inspection, cleaning, calibrating or verification.

This cost effective flow meter option is available for valve sizes from 4” (100mm) to 36” (900mm) inches. The flow sensor comes pre-calibrated from McCrometer’s NIST traceable Calibration Lab and requires no recalibration in the field. With no moving parts and a single-piece design, the SPI Mag’s sensor contains nothing to wear or break, and it is generally immune to clogging by sand, grit or other debris.

The 106-SPI-MV Mag is profiled for the valve body, further enhancing its measurement accuracy by allowing precise determination of mean velocities.

• Accurate flow metering, combined with control valve to save space/cost
• Supplied with Flow Convertor for local display with 4-20mA output measurement or can be combined with PLC-based control panel for flow control applications
• +/- 2% of rate accuracy, NIST traceable

SPI-MV Single Point Insertion Flow Metering Valve

Download Specification Document

SPI-MV Single Point Insertion Flow Metering Valve

For more information on the SPI-MV Single Point Insertion Flow Metering Valve:

Download the SPI-MV Single Point Insertion Flow Metering Valve Product Guide.

Download the SPI-MV Single Point Insertion Flow Metering Valve Guide.

SPI-MV Single Point Insertion Flow Metering Valve

To receive pricing on this product, please click below to contact a Singer Valve representative.
